Wafer Process Systems Inc. manufactures Automated Solar Cell Batch Wet Chemical Process Lines for Post Saw Cleaning, Saw Damage Etching, Acidic and Alkaline Texturization, Pre Cleaning, PSG Etching, Oxide Etching, Pre Nitride Deposition Cleaning, Glass Substrate Cleaning and Glass Substrate Etching.

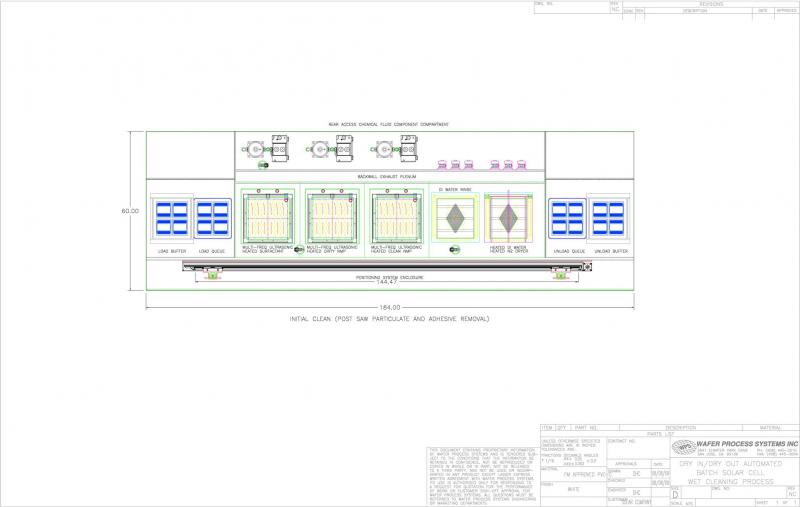

100 wafer four cassette 125 mm Solar Cell Process Line for Post Saw Clean and Adhesive Removal

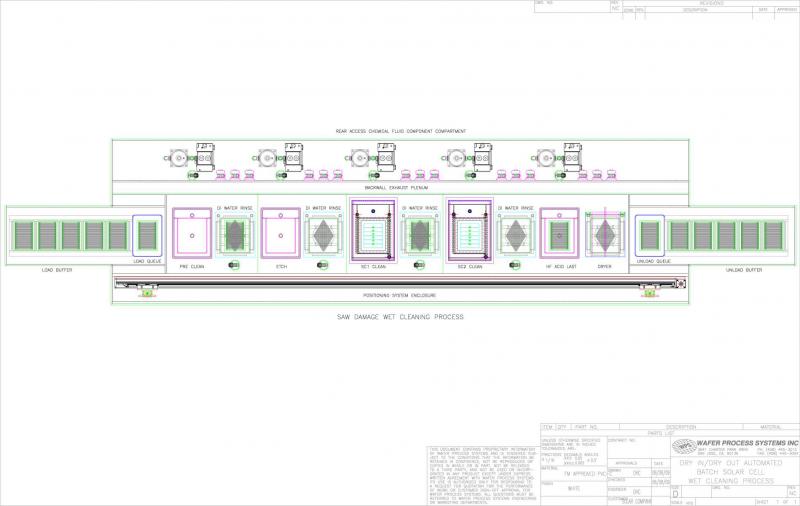

50 wafer single cassette 156 mm Solar Cell Process Line for Saw Damage Clean and Etch

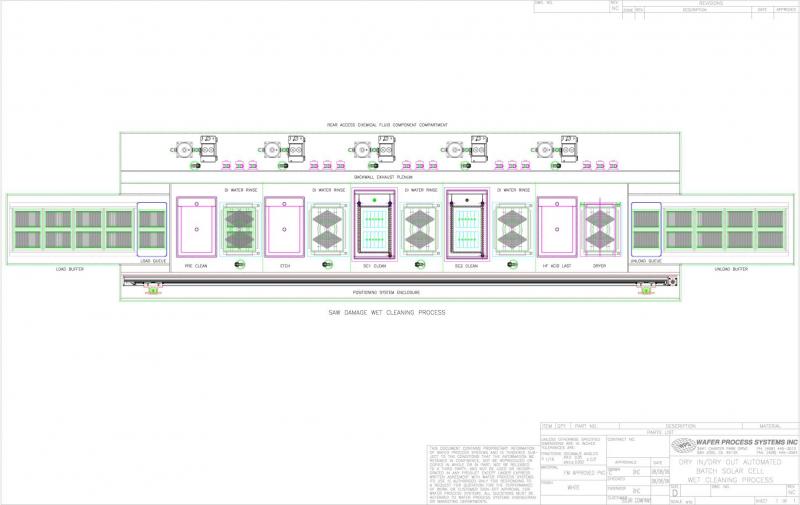

100 wafer dual cassette 156 mm Solar Cell Process Line for Saw Damage Clean and Etch



• Wet Process Systems are designed for single or multiple casstte processing.

• Positioning System uses single transfer mechanism or optional multiple transfer mechanism for higher through put.

The above Manual Solar Cell Batch Wet Chemical Process Line was manufactured for the Government of Egypt to perform Saw Damage Etching, Texturization, Oxide Etching and Neutralization Processes with substrates being transfered through the chemical and rinse processes using a manually operated transfer hoist for cassette carrier transfer.
