Wafer Process Systems Inc.
manufactures a comprehensive line of Conveyorized Wet Chemical Spray Process Equipment to perform various Cleaning, Photo Resist Develop, Acid Copper Etching,  Alkali Copper Etching and Stripping applications commonly found in the Printed Circuit Board Manufacturing Industries.
Wafer Process Systems Inc. offer two conveyor drive designs to accommodate a wide range of flexifble and rigid prited circuit boards up to 30 inches wide. The Belt Drive design ultizes a single piece fluoropolymer mesh conveyor surface which can accommodate most flexible PCB's without the use of support frames. The Serpentine Drive design utilizes a fluoropolymer belt for driving the conveyor wheels which are fabricated of corrosion resistant material. The Serpentine Drive is most sutible for rigid products and provides complete exposure of product surface during spray processes for increased uniformity.

 Conveyorized Spray Process Systems with Serpentine Drive
 Conveyorized Acid Spray Etch System for PCB Etch Application  Conveyorized Spray Etch System with S Drive Acid Spray Etch System Drive Side Conveyorized Acid Spray Etch System for PCB Etch Application with Serpentine Drive - Drive Component Side View Conveyorized Spray Etch System with S Drive Acid Spray Etch System Manifold SideConveyorized Acid Spray Etch System for PCB Etch Application with Serpentine Drive - Spray Manifold and Fluid System Side View Conveyorized Spray Etch System with S Drive Acid Spray Etch System Load UnloadConveyorized Acid Spray Etch System for PCB Etch Application with Serpentine Drive - Load Unload End View

  Conveyorized Alkali Spray Etch System for PCB Etch Application  Conveyorized Spray Etch System with S Drive Alkali Spray Etch System Drive Side Conveyorized Alkali Spray Etch System for PCB Etch Application with Serpentine Drive - Drive Component Side View Conveyorized Spray Etch System with S Drive Alkali Spray Etch System Manifold Si
Conveyorized Alkali Spray Etch System for PCB Etch Application with Serpentine Drive - Spray Manifold and Fluid System Side Conveyorized Spray Etch System with S Drive Alkali Spray Etch System Load UnloadConveyorized Alkali Spray Etch System for PCB Etch Application with Serpentine Drive - Load Unload End View

  Conveyorized Photo Resist Spray Develop System for PCB Photo Resist Develop Application  Conveyorized Spray Etch System with S Drive Develop Spray System Drive SideConveyorized Photo Resist Spray Develop System for PCB Photo Resist Develop Application with Serpentine Drive - Drive Component Side View
 Conveyorized Spray Etch System with S Drive Develop Spray System Manifold Side
Conveyorized Photo Resist Spray Develop System for PCB Photo Resist Develop Application with Serpentine Drive - Spray Manifold and Fluid System Side   Conveyorized Spray Etch System with S Drive Develop Spray Etch System Load Unloa
Conveyorized Photo Resist Spray Develop System for PCB Photo Resist Develop Application with Serpentine Drive - Load Unload End View


 Conveyorized Spray Process Systems with Belt Drive

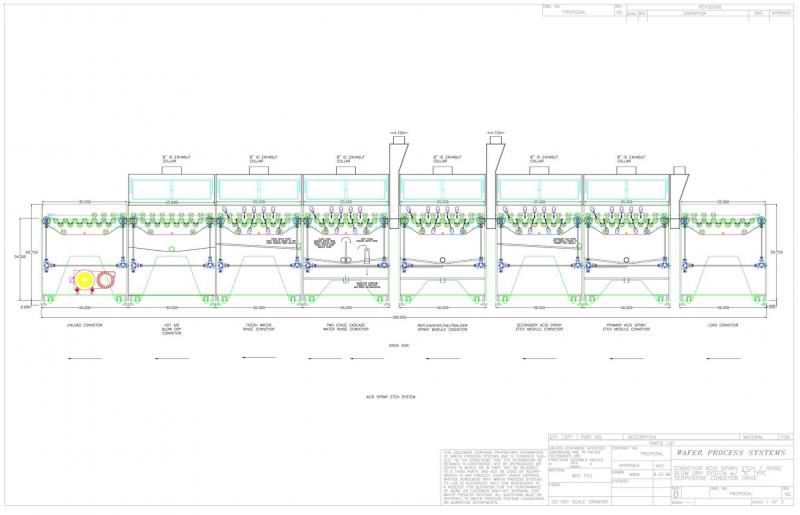

 Conveyorized Acid Spray Etch System for PCB Etch Application Conveyorized Spray Etch System with Belt Drive Acid Spray Etch System Drive Side Conveyorized Acid Spray Etch System for PCB Etch Application with Belt Drive - Drive Component Side Conveyorized Spray Etch System with Belt Drive Acid Spray Etch System Manifold SConveyorized Acid Spray Etch System for PCB Etch Application with Belt Drive - Spray Manifold and Fluid System Side  Conveyorized Acid Spray Etch System for PCB Etch Application with Belt Drive - Load Unload End View


  Conveyorized Alkali Spray Etch System for PCB Etch Application Conveyorized Spray Etch System with Belt Drive Alkali Spray Etch System Drive SiConveyorized Alkali Spray Etch System for PCB Etch Application with Belt Drive - Drive Component Side Conveyorized Spray Etch System with Belt Drive Alkali Spray Etch System ManifoldConveyorized Alkali Spray Etch System for PCB Etch Application with Belt Drive - Spray Manifold and Fluid System Side  Conveyorized Alkali Etch System for PCB Etch Application with Belt Drive - Load Unload End View


  Conveyorized Photo Resist Spray Develop System for PCB Resist Develop Application Conveyorized Spray Develop System with Belt Drive Develop Spray System Drive Sid Conveyorized Photo Resist Spray Develop System for PCB Resist Develop Application with Belt Drive - Drive Component Side
Conveyorized Spray Develop System with Belt Drive Develop Spray System ManifoldConveyorized Photo Resist Spray Develop System for PCB Resist Develop Application with Belt Drive - Spray Manifold and Fluid System Side
Conveyorized Photo Resist Develop System for PCB Etch Application with Belt Drive - Load Unload End View


Wafer Process Systems Inc. Conveyorized Spray Systems for PCB Process Applications incorporate systems features such as
  • Integral Conveyor Drive System for each process module with Drive Sycronization Controls



  • Proximity Sensing of PCB at inlet and outlet of each process module.



  • Proximity sensing of PCB at process spray location.



  • In-Situ Recovery / Deposition system for reclaiming etched metals from chemical etch solution during etch process.
